FSUT 77X 6 Z 6 30 HP

Straight union

Item number:		88347574
Description

Type	FSUT	Straight union space saver x space saver
Union nut material	77	PFA for flare connection

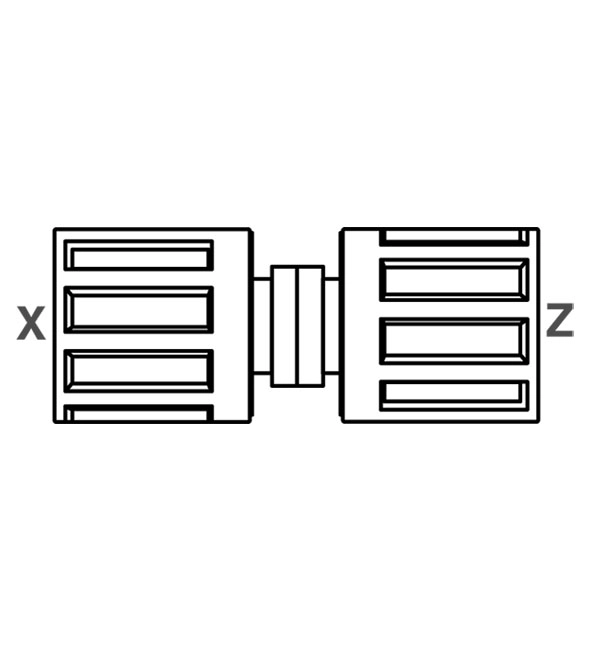

Space saver-X	X	Space saver in X-position
Connection X	6	3/8", international code: 6
Space saver-Z	Z	Space saver in Z-position
Connection Z	6	3/8", international code: 6
Fitting material	30	PFA, perfluoroalkoxy
High Purity version	HP	High Purity

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

The fitting bodies are made from PFA; the union nuts are made from PFA, PVDF or CPFA. All parts are manufactured in cleanroom conditions and have extremely high chemical resistance. The design also demonstrates a clearly reduced deadleg.

High reliability, even in high vibration applications
Simple operation
Various designs and connections
Sizes from ¼" to 2"
Suitable for high-purity media
Available as "Space saver version", for space-saving connection
