SUB B10DHBB8K8 10HB

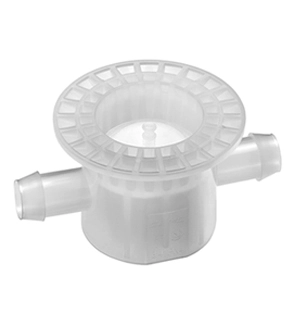

Single-use body

Item number:		88449775
Description

Type	SUB	Single-use body
Diaphragm size	B	Diaphragm size B
Connection size 1	10	DN 10 - 3/8
Body configuration	D	2/2-way body
Connection type	HB	Hose barb
Body material	B8	PP-R, natural
Diaphragm material	K8	TPE
Connection size 2	10	DN 10 - 3/8
Connection type, spigot 2	HB	Hose barb

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

The GEMÜ SUB valve body of the GEMÜ SUMONDO single-use valve has an internally welded diaphragm. The single-use valve body is fastened via a clamp to the GEMÜ SUPM pneumatic actuator made from stainless steel or to the GEMÜ SUHK plastic manual operator. The valve body and the actuator are locked with a defined opening and closing procedure. After a single use, the valve body and its diaphragm are removed from the actuator and disposed of. The actuator remains in the system and can be used multiple times.

Impact resistant, corrosion resistant
Mechanically stable and gamma-sterilizable body material
Certificate of Conformity for purity, safety and physical and chemical tests
Validation Guide on request
The valve body meets the purity requirements of the pharmaceutical industry (USP 85, 788, 790)
Manufactured in ISO class 8 cleanroom
