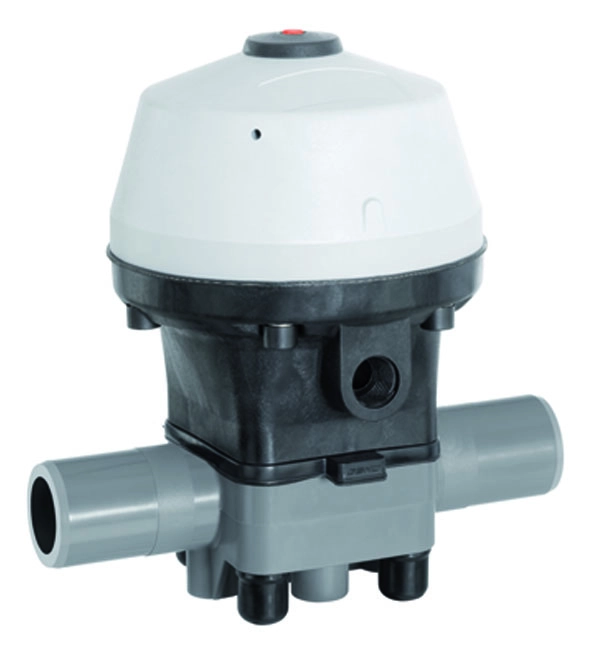

R690 25D33 4291EDN

Diaphragm valve, pneumatic

Item number:		88724190
Description

Type	R690	Diaphragm valve, pneumatically operated, plastic membrane actuator
DN	25	DN 25
Body configuration	D	2/2-way body
Connection type	33	Union end with inch insert - BS (socket)
Valve body material	4	ABS
Diaphragm material	29	EPDM
Control function	1	Normally closed (NC)
Actuator version	EDN	Actuator size EDN (diaphragm size 20)
Diaphragm size	20	Diaphragm size 20

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

The GEMÜ R690 2/2-way diaphragm valve has a low maintenance membrane actuator and is pneumatically operated. Normally Closed (NC), Normally Open (NO) and Double Acting (DA) control functions are available. The high-flow valve body provides compact dimensions at high flow rates.

Same mounting height planes over multiple nominal sizes
Compact system design due to flow-optimized high-flow valve bodies
Reduced control air consumption
Modified spring sets available for applications with reduced control pressure
