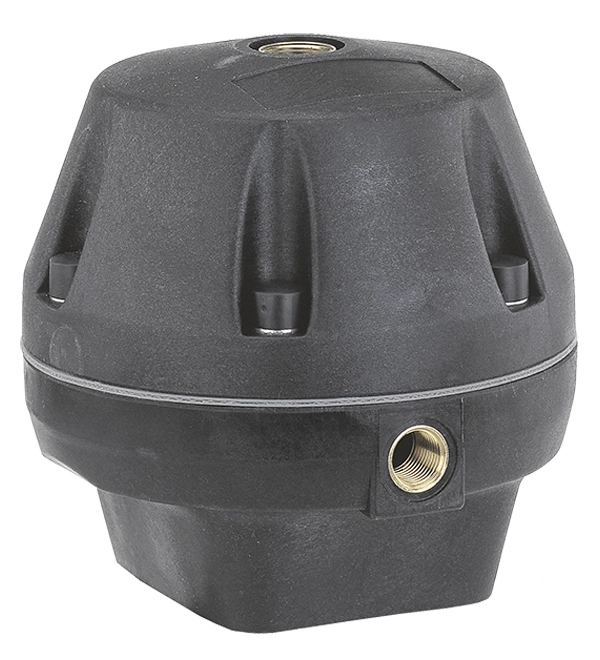

9695 50D 1JDN

Actuator diaphragm valve,pneu.

Item number:		88703478
Description

Type	9695	Plastic operator
Diaphragm size	50	Diaphragm size 50
Actuator use	D	2/2-way body
Control function	1	Normally closed (NC)
Actuator version	JDN	Actuator size JDN
Information	INFO_REDESIGN	Are you replacing your actuator and have an accessory that you want to re-use? If the actuators are not the same generation, please get in touch with your GEMÜ contact person. You can find further information online via www.gemu-group.com/actuator-redesign

Request a quotation now
To see prices login/register here

Tender specifications Documents

Tender specifications for
