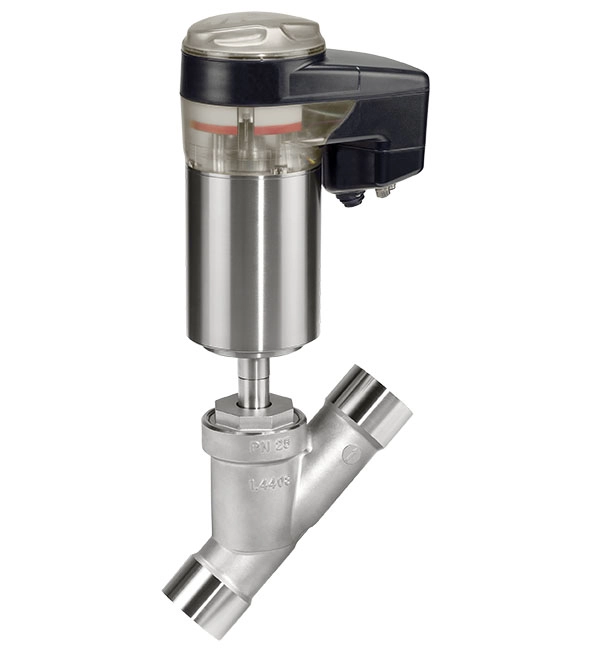

549 15D6037 5C1L0RD409 0A

Angle seat globe valve, mot.

Item number:		88698588
Description

Type	549	Angle seat globe valve, electrically operated, electro-mechanical hollow shaft actuator, eSyDrive
DN	15	DN 15
Body configuration	D	2/2-way body
Connection type	60	Spigot ISO 1127 / EN 10357 series C
Valve body material	37	1.4408, investment casting
Seat seal	5	PTFE
Voltage / Frequency	C1	24 V DC
Control module	L0	OPEN/CLOSE, positioner and process controller
Regulating cone	RD409	1.6 m³/h - mod. EQ with red. seat
Actuator version	0A	Actuator size 0

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

The GEMÜ 549 eSyDrive is an electrically operated 2/2-way angle seat globe valve with a hollow shaft electric actuator. The eSyDrive hollow shaft actuator can be operated as On/Off or with integrated positioner or process controller. The valve spindle is sealed by a self-adjusting gland packing. This provides a low-maintenance and reliable valve spindle seal even after an extended period of operation. A wiper ring fitted in front of the gland packing protects the seal against contamination and damage. An integral optical and electrical position indicator is standard.

CIP/SIP capable
Linear or modified equal-percentage control characteristics
Open/Close function, positioner and process controller
Force and speed are variably adjustable
Actuating speed max. 6 mm/s
Extensive diagnostic functions
Operable via web interface eSy-Web or Modbus TCP
On-site or remote end position programming via programming input
Various functions integrated (e.g. feedback, stroke limiter, etc.)
