D457 65W225G5140 GB232 7044

Butterfly valve, manual

Item number:		88580406
Description

Type	D457	Butterfly valve, manually operated
DN	65	DN 65
Body configuration	W	Intermediate flange version (Wafer), length FTF EN 558 series 20
Operating pressure	2	10 bar
Connection type	2	EN 1092 PN 10
Body material	5	PP, reinforced
Disc material	G5	PP-H
Shut-off seal material	14	EPDM
Control function	0	Manually operated
Operator version	GB232	Gearbox, aluminium die-cast housing
Execution type	7044	Gearbox with padlock system

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

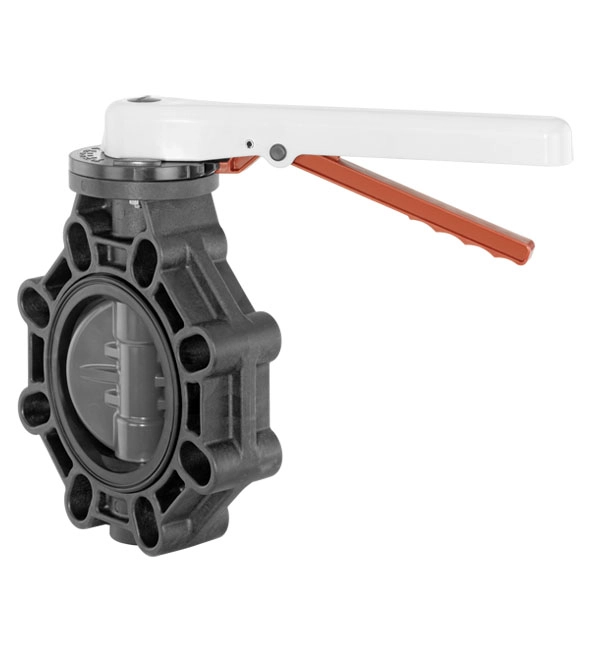

The GEMÜ D457 soft seated butterfly valve is manually operated. It has a metal hand lever or gearbox depending on customer requirements. The butterfly valve is available in nominal sizes DN 50–300 and has a wafer body version. The hand lever can be adjusted in seven positions (each at 55°) and is equipped with a hole for fitting a safety lock to prevent unwanted changes in position.

Low weight
Corrosion resistant plastic body
Disc outlet dimension designed on plastic piping
Lockable hand lever made of plastic with latch positions
UV resistant
Low torque
