Pneumatic 2/2-way diaphragm valve with metal body

GEMÜ 605

ConfigureTechnical data sheet

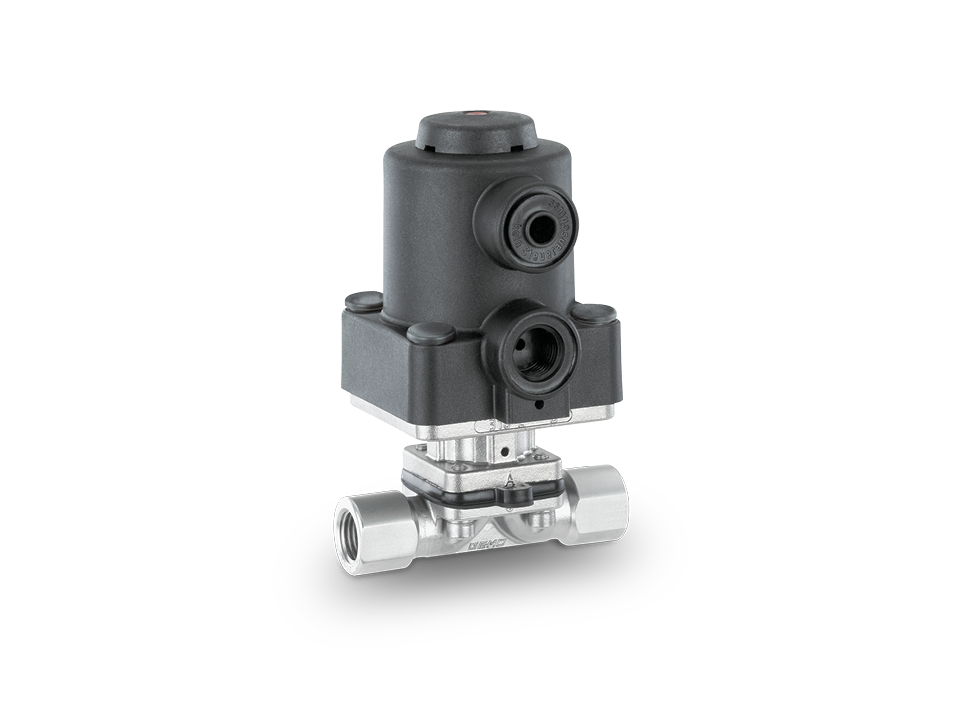

Pneumatically operated diaphragm valve made of stainless steel with female thread connections – ideal for the pharmaceutical, biotechnology, and food industries.

Valve with low-maintenance plastic piston actuator in MG 8

Product information

The GEMÜ 605 2/2-way diaphragm valve has a low-maintenance plastic piston actuator and is pneumatically operated. The valve has a metal distance piece. An integrated optical position indicator is standard. Normally Closed (NC), Normally Open (NO) and Double Acting (DA) control functions are available.

Key features

  • Compact design (ideal when space is at a premium)
  • Wide range of adaptation options for add-on components and accessories
  • Hermetic separation between medium and actuator
  • CIP/SIP capable
  • Wide range of adaptation options for add-on components and accessories
Pneumatically operated diaphragm valve made of stainless steel with female thread connections – ideal for the pharmaceutical, biotechnology, and food industries.

Technical details

Parameters
Value
Media temperature
-10 to 100 °C
Sterilization temperature
max. 150 °C
Ambient temperature
0 to 60 °C
Operating pressure
0 to 8 bar
Nominal sizes
DN 4 to 15
Body configurations
2/2-way bodies
Multi-port bodies
T body
Tank valve body
Connection types
Clamp
Spigot
Thread
Connection standards
ANSI
ASME
BS
DIN
EN
ISO
JIS
Body materials
1.4408, investment casting material
1.4435 (316L), block material
1.4435 (BN2), forged material
1.4435 (F316L), forging material
1.4435, investment casting material
1.4539 (904L), forged material
3.7035, titanium, block material
Diaphragm materials
EPDM
FKM
PTFE/EPDM
PTFE/FKM
Conformities
3A
ATEX
BSE/TSE
CRN
EAC
EHEDG
FDA
FMEDA
Regulation (EC) No. 1935/2004
Regulation (EC) No. 2023/2006
Regulation (EU) No. 10/2011
TA Luft (German Clean Air Act)
USP

Downloads

10 Results
  • Technical information GEMÜ 601, 605, 611, 612, 615, 625, 629, 639, 695, 687, 660, 650, 653, 654, 649

    pdf (169 KB) -
    EN

  • Product brochure Angle gauge

    pdf (195 KB) -
    EN

  • Datasheet GEMÜ 605, 625

    pdf (3 MB) -
    EN

  • Product certificate 3A - GEMÜ diaphragm valve collection

    pdf (209 KB) -
    EN

  • Functional safety FMEDA - GEMÜ 605, 610, 615, 625

    pdf (527 KB) -
    EN

  • Datasheet GEMÜ 605 (US)

    pdf (875 KB) -
    EN

  • Declaration of Conformity - GEMÜ product collection

    pdf (104 KB) -
    EN

  • Betriebsanleitung / Operating instructions GEMÜ 605

    pdf (642 KB) -
    DE/EN

  • Product certificate passivated - Electropolished GEMÜ valve body collection

    pdf (37 KB) -
    EN

  • Data sheet GEMÜ 605

    pdf (875 KB) -
    EN
