C50 6D7730 511A1 HPW

iComLine valve, pneumatic

Item number:		88493070
Description

Type	C50	Plastic globe valve, pneumatic
Connection size	6	3/8", international code: 6
Body configuration	D	2/2-way body
Connection type	77	Flare connection with PFA union nut
Valve body material	30	PFA, perfluoroalkoxy
Seal material	5	PTFE
Control function	1	Normally closed (NC)
Actuator version	1A1	Operator size 1, seat diameter 6.38 mm, with optical position indicator
High Purity version	HPW	High Purity white

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

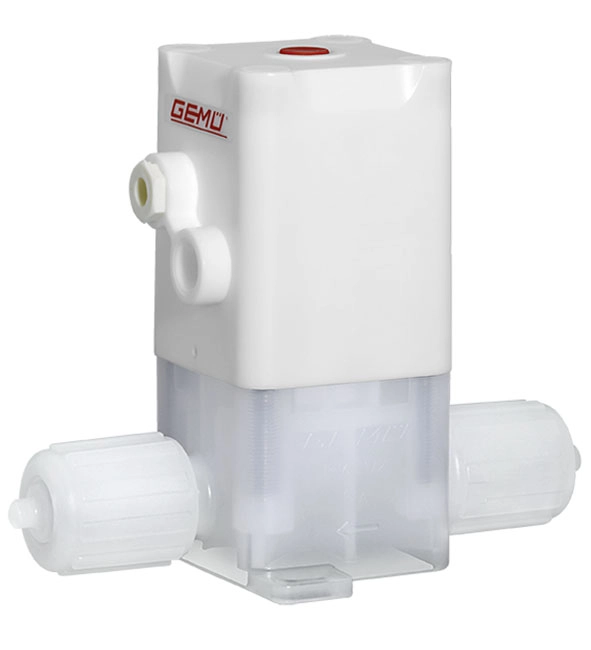

The GEMÜ C50 iComLine ultra-pure 2/2-way plastic diaphragm globe valve has a pneumatic actuator. All media wetted parts are made of PFA or PTFE. The external actuator parts are made of PVDF. An integral optical position indicator is standard. In addition to 2/2-way valve bodies, customized multi-port valve block solutions can be produced.

Low space requirement due to compact design
Ideally suited for corrosive media
High purity due to cleanroom manufacturing
Manifolds are a space-saving design solution
