660 20D80405431T1 1536

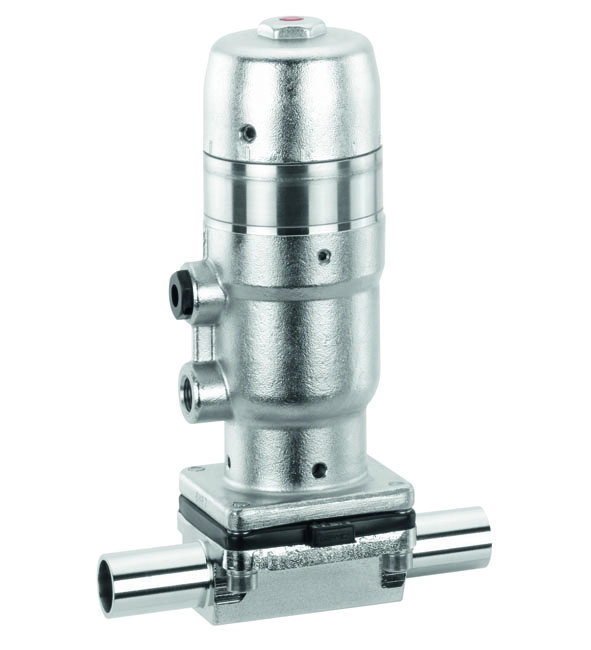

Diaphragm valve, pneumatic

Item number:		88937642
Description

Type	660	Diaphragm valve, pneumatically operated, stainless steel piston actuator, stroke limiter and seal adjuster
DN	20	DN 20
Body configuration	D	2/2-way body
Connection type	80	Clamps ASME BPE Face to face ASME BPE
Valve body material	40	1.4435 (F316L), forged body
Diaphragm material	54	PTFE/EPDM one-piece
Control function	3	Double acting (DA)
Actuator version	1T1	Operator size 1T1
Execution type	1536	Ra ≤ 0.4 µm (15 µin.) for media wetted surfaces, to DIN 11866 H4, mechanically polished internal
Surface	1536	Ra ≤ 0.4 µm (15 µin.) for media wetted surfaces, to DIN 11866 H4, mechanically polished internal
Diaphragm size	10	Diaphragm size 10

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

The GEMÜ 660 2/2-way diaphragm valve has a stainless steel piston actuator and is pneumatically operated. The valve was designed for dosing and filling a wide range of products. All actuator parts are made from stainless steel (except seals). Normally Closed (NC), Normally Open (NO) and Double Acting (DA) control functions are available. An opening stroke and closing stroke limiter and an optical position indicator are integrated as standard.

Easily adjustable, integrated opening stroke and closing stroke limiter
Precise stroke scale (10 scale points per turn) on the actuator top
High level of reproducibility of the flow rates thanks to distance sleeves integrated in the shut-off diaphragms
Fast cycle duties due to minimized filling volume
