695 50D39395M1JDN

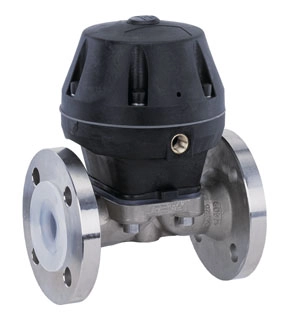

Diaphragm valve, pneumatic

Item number:		88775547
Description

Type	695	Diaphragm valve, pneumatically operated, plastic membrane actuator
DN	50	DN 50
Body configuration	D	2/2-way body
Connection type	39	Flanges ANSI Class 125/150 RF, Face to face EN 558, series 1, ISO 5752, basic series 1
Valve body material	39	1.4408, PFA lined
Diaphragm material	5M	PTFE/EPDM two-piece
Control function	1	Normally closed (NC)
Actuator version	JDN	Operator size JDN
Diaphragm size	50	Diaphragm size 50
This article is listed as a Dual-Use-good according to Regulation EU 2021/821 under Control list No. 2B350g. If these goods are supplied to countries outside the EU, the relevant export restrictions apply.

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

The GEMÜ 695 2/2-way diaphragm valve has a low-maintenance membrane actuator and is pneumatically operated. Normally Closed (NC), Normally Open (NO) and Double Acting (DA) control functions are available.

Wide range of adaptation options for add-on components and accessories
Suitable for particulate and abrasive media
Stainless steel body suitable for corrosive environments
CIP capable
