617 15D 7 1 40

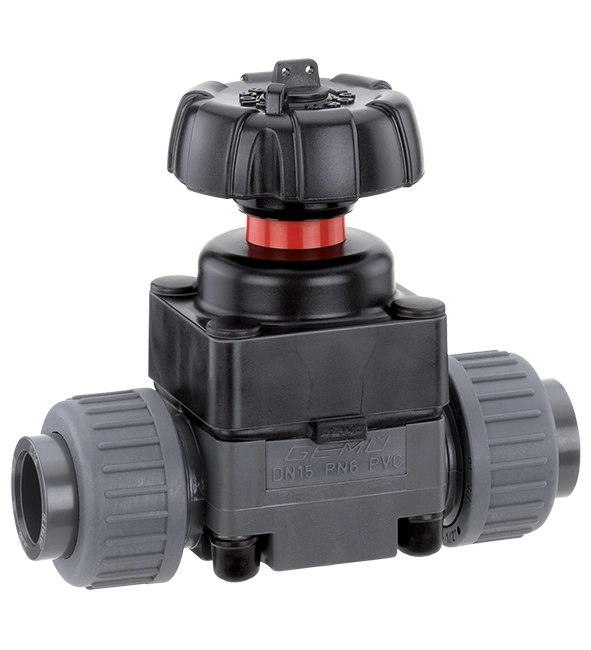

Diaphragm valve, manual

Item number:		88009433
Description

Type	617	Diaphragm valve, manually operated, plastic handwheel, optical position indicator
DN	15	DN 15
Body configuration	D	2/2-way body
Connection type	7	Union end with DIN insert (socket)
Valve body material	1	PVC-U, grey
Diaphragm material	4	FPM
Control function	0	manually operated
Diaphragm size	10	Diaphragm size 10

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

The GEMÜ 617 2/2-way diaphragm valve has a low maintenance plastic bonnet and is manually operated. An integral optical position indicator is standard.

High flow rate
Integral optical position indicator
Choice of various body materials and connection types
