C60 4D7330541 1 7030HPW

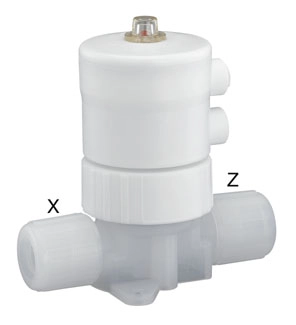

Cleanstar valve, pneumatic

Item number:		88674296
Description

Type	C60	Diaphragm valve, pneumatically operated, plastic piston actuator, optical position indicator, stroke limiter (only for actuator size 1-3)
Connection size	4	1/4", international code: 4
Body configuration	D	2/2-way body
Connection type	73	Flare connection with CPFA union nut
Valve body material	30	PFA, perfluoroalkoxy
Diaphragm material	54	PTFE/EPDM one-piece
Control function	1	Normally closed (NC)
Actuator version	1	Operator size 1
Execution type	7030	C60, spring PFA coated
High Purity version	HPW	High Purity white

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

The GEMÜ C60 CleanStar® ultra pure 2/2-way diaphragm valve has a plastic piston actuator and is pneumatically operated. A stroke limiter (not with actuator size 4) and an optical position indicator are integrated as standard. All media wetted parts are made of PFA or PTFE. This High Purity version of the CleanStar® series complies with the strictest purity standards and boasts high chemical resistance. It can also be used with high media temperatures. As such, it is often used at the supply and distribution level in semiconductor factories.

High purity due to cleanroom manufacturing
High Flow version selectable
High flow rate with low-stress media channelling
Minimal deadleg
Optional flow direction
Also available as T valve
The valve is available with an ECTFE union nut as an option.
Reduced costs thanks to long service life
