539 40D4837 5C1L0RJ107 0A

Globe valve, motorized

Item number:		88691389
Description

Type	539	Globe valve, electrically operated, electro-mechanical hollow shaft actuator, eSyDrive
DN	40	DN 40
Body configuration	D	2/2-way body
Connection type	48	Flange JIS 20K face-to-face dimension FTF EN 558, series 10 ASME/ANSI B 16.10 table 1, column 16, DN 50 drilled to JIS 10K
Valve body material	37	1.4408, investment casting
Seat seal	5	PTFE
Voltage / Frequency	C1	24 V DC
Control module	L0	OPEN/CLOSE, positioner and process controller
Regulating cone	RJ107	16 m³/h - linear with red. seat
Actuator version	0A	Actuator size 0

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

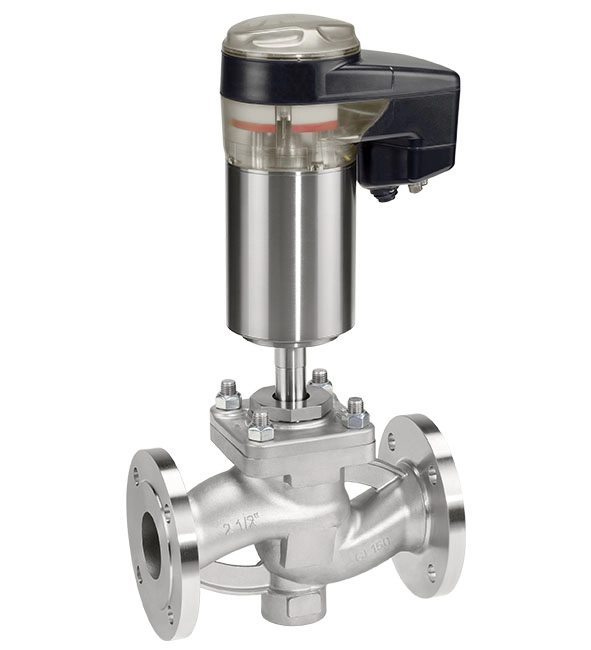

The GEMÜ 539 eSyDrive is a motorized 2/2-way globe valve with a hollow shaft electric actuator. The eSyDrive hollow shaft actuator can be operated as On/Off or with integrated positioner or process controller. The valve spindle is sealed by a self-adjusting gland packing providing low-maintenance and reliable valve spindle sealing even after a long service life. A wiper ring fitted in front of the gland packing protects the seal against contamination and damage. An integral optical and electrical position indicator is standard.

Linear or modified equal-percentage control characteristics
High flow rate
Force and speed are variably adjustable
Extensive diagnostic facilities
Operable via web interface eSy-Web
Integral optical position indicator and LED high visibility display
Suitable for vacuum up to 20 mbar (a)
