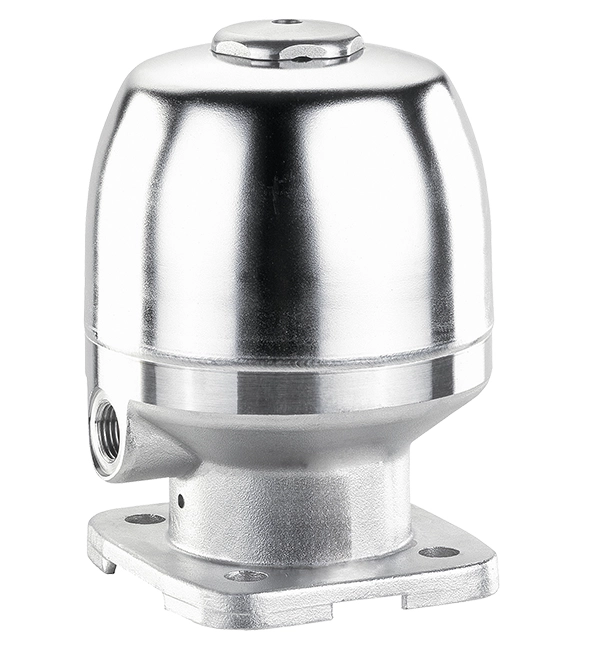

9650 8D 10T1-C

Actuator diaphragm valve,pneu.

Item number:		88496256
Description

Type	9650	Metal operator
Diaphragm size	8	Diaphragm size 8
Actuator use	D	2/2-way body
Control function	1	Normally closed (NC)
Actuator version	0T1	Operator size 0T1
CONEXO	C	Integrated RFID chip for electronic identification and traceability

Request a quotation now
To see prices login/register here

Tender specifications Documents

Tender specifications for
