695 32D 190291HDN

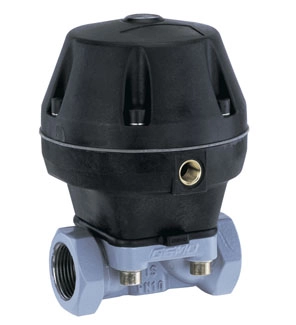

Diaphragm valve, pneumatic

Item number:		88775635
Description

Type	695	Diaphragm valve, pneumatically operated, plastic membrane actuator
DN	32	DN 32
Body configuration	D	2/2-way body
Connection type	1	Threaded socket DIN ISO 228
Valve body material	90	EN-GJS-400-18-LT (GGG 40.3)
Diaphragm material	29	EPDM
Control function	1	Normally closed (NC)
Actuator version	HDN	Operator size HDN (diaphragm size 40)
Diaphragm size	40	Diaphragm size 40

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

The GEMÜ 695 2/2-way diaphragm valve has a low-maintenance membrane actuator and is pneumatically operated. Normally Closed (NC), Normally Open (NO) and Double Acting (DA) control functions are available.

Wide range of adaptation options for add-on components and accessories
Suitable for particulate and abrasive media
Stainless steel body suitable for corrosive environments
CIP capable
