601 15D80405400TS 1559 SF2

Diaphragm valve, manual

Item number:		88698781
Description

Type	601	Diaphragm valve, manually operated, plastic handwheel, stainless steel distance piece, optical position indicator, seal adjuster
DN	15	DN 15
Body configuration	D	2/2-way body
Connection type	80	Clamps ASME BPE Face to face ASME BPE
Valve body material	40	1.4435 (F316L), forged body
Diaphragm material	54	PTFE/EPDM one-piece
Control function	0	manually operated
Actuator version	0TS	With seal adjuster, black handwheel
DN -2	15	DN 15
Connection type spigot 2	59	Spigots ASME BPE
Execution type	SF2	Ra Max. 0.64 μm (25 μin.) for media wetted surfaces, to ASME BPE SF2, mechanically polished internal
Surface	SF2	Ra Max. 0.64 μm (25 μin.) for media wetted surfaces, to ASME BPE SF2, mechanically polished internal
Diaphragm size	8	Diaphragm size 8

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

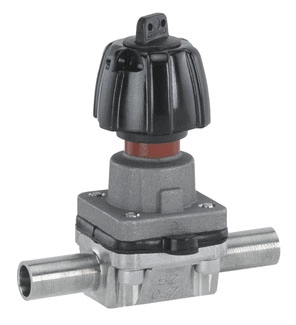

The GEMÜ 601 2/2-way diaphragm valve has a temperature-resistant plastic handwheel and is manually operated. A seal adjuster for increasing the service life of the diaphragm and an optical position indicator are integrated as standard.

Hermetic separation between medium and actuator
Optional flow direction and installation position
Long service life of the diaphragm due to patented seal adjuster (US-Pat. 5 377 956)
Valve body also available in multi-port designs (M-block and T-body) or as tank bottom valve body
Compact design (ideal when space is at a premium)
CIP/SIP capable

Tender specifications for
